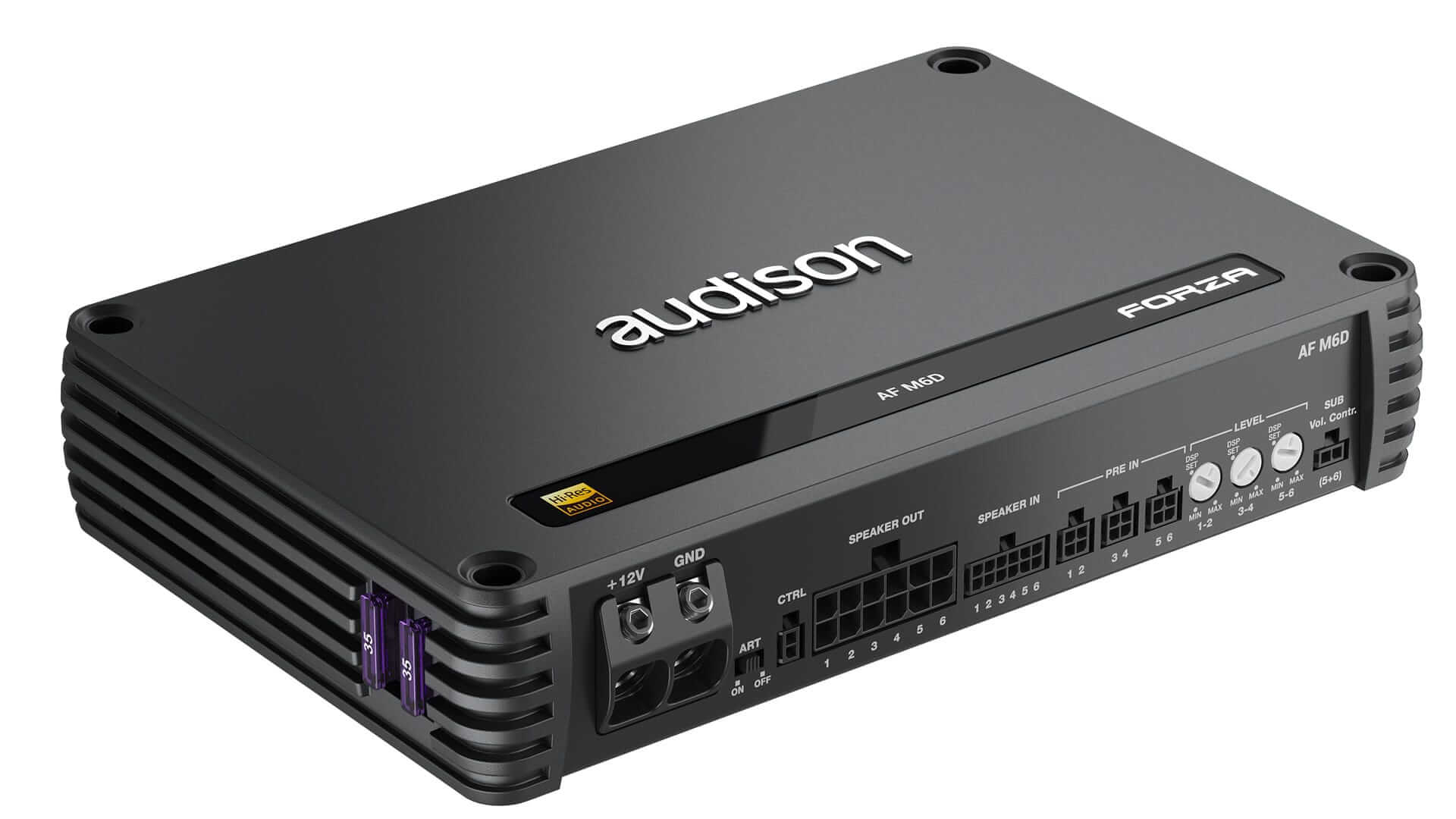

Audison Forza AF M6D

AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING. 6 Channels AMPLIFIER - 1320W

Discription:

• More Power
• More Information
• More Control
• More Inputs
• More Speed
• More Tools
• More Capabilities
• More Guidance
• More Flexibility
• all in one state-of-the-art platform!

AUDIOPHILE SOUND YOU EXPECT FROM AUDISON

AF M6D boasts six high-fidelity amplified channels 135W x 6 @4Ω*, 220W x 6 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440W x 3 @4Ω*, guaranteeing flexible and powerful performance.

*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

Technical Specification:

POWER SUPPLY

• Nominal power supply voltage / fuse:  11 ÷ 15 VDC / 2 x 35A
• Pulse operating voltage: 6.5 ÷ 17.5 VDC
• Idling current: 1.0 A
• Standby current draw: 0.009 mA
• Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 67 A
• Remote IN: 4 ÷15 VDC (1 mA)
• Remote OUT: 6.5 ÷15 VDC (150 mA)
• ART – Automatic Remote Turn on/off from Speaker-In  1.5 VDC
• Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 81%

AMPLIFIER STAGE

• Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.04%
• Damping factor @ 1 kHz , 4Ω, 2 VRMS: 160
• Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
• S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 103 dBA
• Minimum load impedance: 6Ch: 2Ω   3Ch – (Bridge 1/2; 3/4; 5/6): 4Ω
• Output Continuous Power (RMS) @14.4 VDC, 1% THD:

· 6 Ch @ 4Ω: 135 W x 6

· 6 Ch @ 2Ω: 220 W x 6

· 3 Ch (Bridge 1/2; 3/4; 5/6) @ 4Ω:: 440 W x 3

CEA SPECIFICATIONS

• Output power @ 4Ω, 1% THD+N, 14.4 V: 130 W x 4
• SN ratio (ref. 1 W output): 80 dB

INPUTS / OUTPUTS / FILTERS

• Inputs Pre-In / Speaker-In
• Input sensitivity Pre-In    0.6 ÷ 6 VRMS
• Input sensitivity Speaker-In   2.2 ÷ 22 VRMS
• SUB remote Volume Control (optional)   ±12 dB

GENERAL REQUIREMENTS

• Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)

SIZE / WEIGHT

• Max size W x H x D (cm/inch): 24,0 x 4,7 x 15,6 / 9.44 x 1.85 x 6.14
• Weight (kg/lb): 1.95 / 4.3
