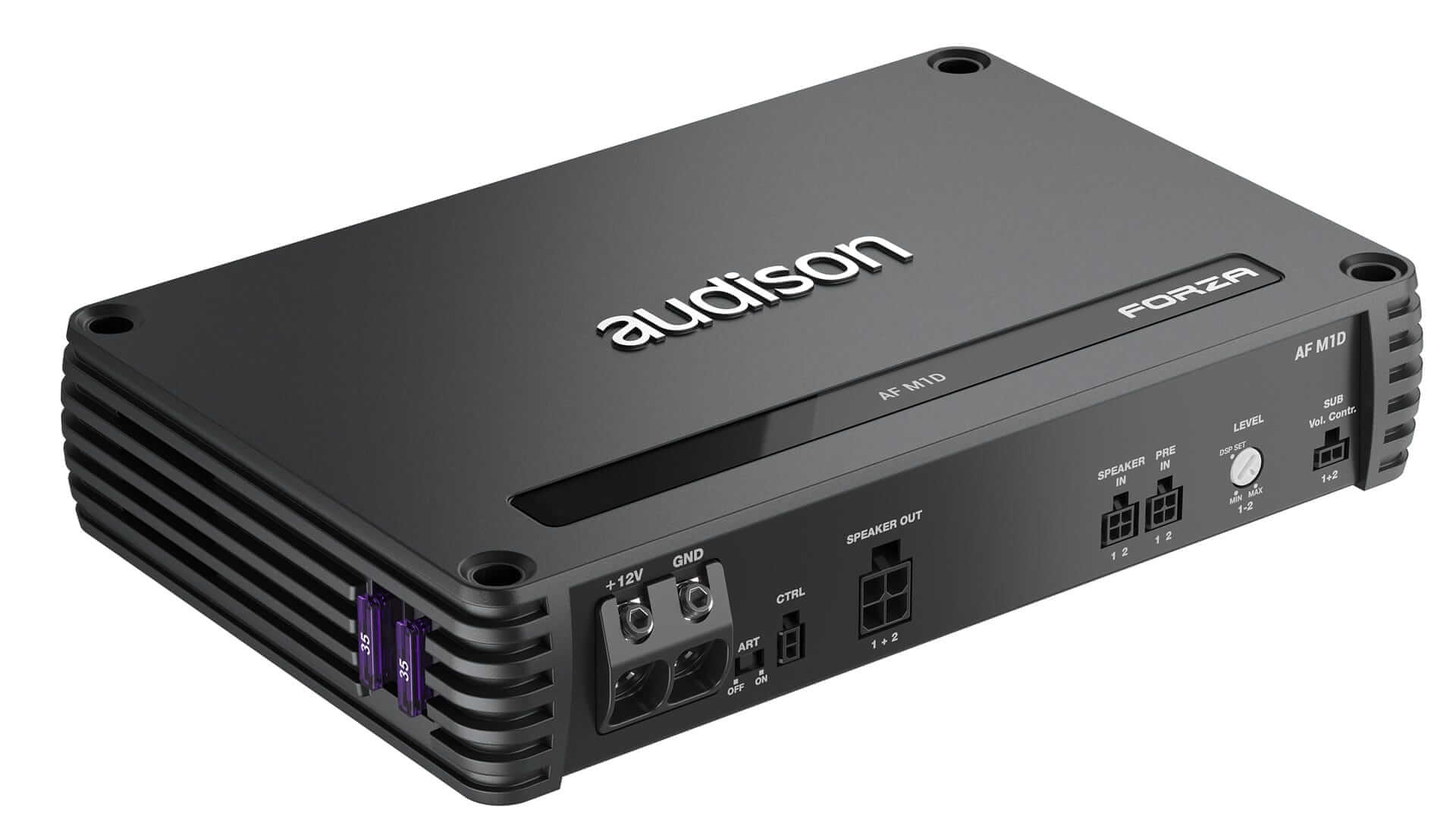

Produktinformationen "Audison Forza AF M1D"
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING. MONO AMPLIFIER - 1200W
Discription:
- More Power
- More Information
- More Control
- More Inputs
- More Speed
- More Tools
- More Capabilities
- More Guidance
- More Flexibility
- all in one state-of-the-art platform!
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AF M1D boasts one high-fidelity amplified channel 600W @4Ω*, 1000W @2Ω*, and 1200W @1Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
Technical Specification:
POWER SUPPLY
- Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35A
- Pulse operating voltage: 6.5 ÷ 17.5 VDC
- Idling current: 1.3 A
- Standby current draw: 0.005 mA
- Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 65 A
- Remote IN: 4 ÷15 VDC (1 mA)
- Remote OUT: 6.5 ÷15 VDC (150 mA)
- ART – Automatic Remote Turn on/off from Speaker-In 1.5 VDC
- Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 81%
AMPLIFIER STAGE
- Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.1%
- Damping factor @ 1 kHz , 4Ω, 2 VRMS: 140
- Bandwidth @ -3 dB: 10 Hz ÷ 500 Hz
- S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 105 dBA
- Minimum load impedance: 1 Ω
- Output Continuous Power (RMS) @14.4 VDC, 1% THD:
· 1 Ch @ 4Ω: 600 W
· 1 Ch @ 2Ω: 1000 W
· 1 Ch @ 1Ω: 1200 W
CEA SPECIFICATIONS
- Output power @ 4Ω, 1% THD+N, 14.4 V: 600 W
- SN ratio (ref. 1 W output): 80,5 dB

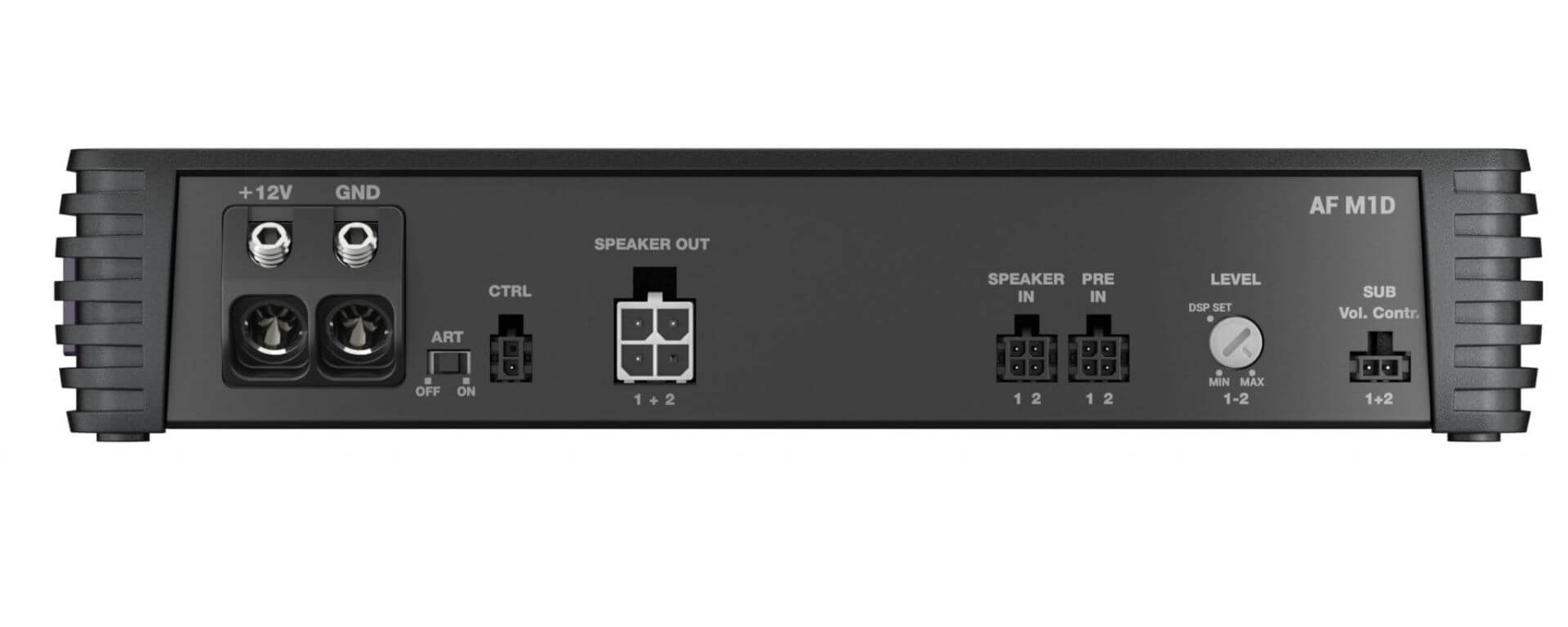

INPUTS / OUTPUTS / FILTERS
- Inputs Pre-In / Speaker-In
- Input sensitivity Pre-In 0.6 ÷ 6 VRMS
- Input sensitivity Speaker-In 2.2 ÷ 22 VRMS
- SUB remote Volume Control (optional) ±12 dB
GENERAL REQUIREMENTS
- Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
SIZE / WEIGHT
- Max size W x H x D (cm/inch): 24,0 x 4,7 x 15,6 / 9.44 x 1.85 x 6.14
- Weight (kg/lb): 2.04 / 4.49
FEATURES:
- Hi Res Audio: Extended audio band up to 40 kHz.
- USS: Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.
